Display & RS485 Controller

This interface is available in 2 versions.

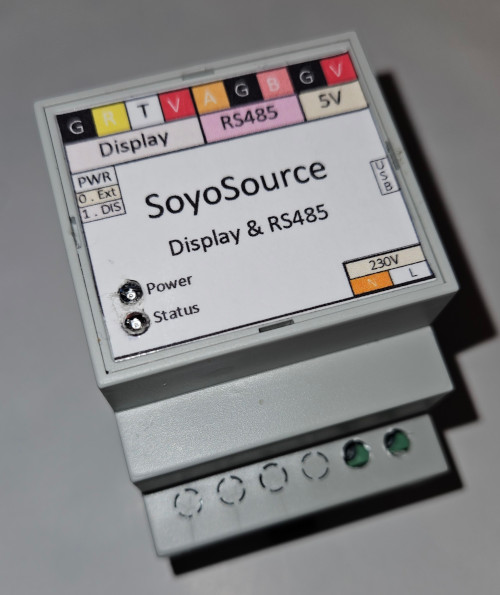

External control in DIN housing

The controller is connected to the RS485 via cable. In order to be able to configure all settings, another cable must be installed in the device. This cable provides the display connections to an external connector.

soyosource_extern_neu

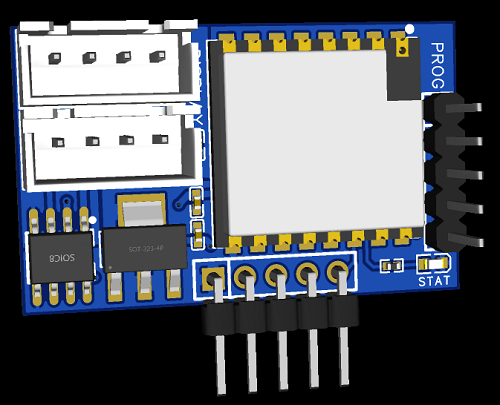

Internal control

This is plugged into the inverter instead of the RS485 board and has an external antenna. The display cable is simply looped through the board. soyosource_intern

Both allow you to configure all the settings of the SoyoSource inverter and control the zero feed-in.

All necessary information can be found on Github.
The software is based on ESPHome and on the great work of Syssi.
